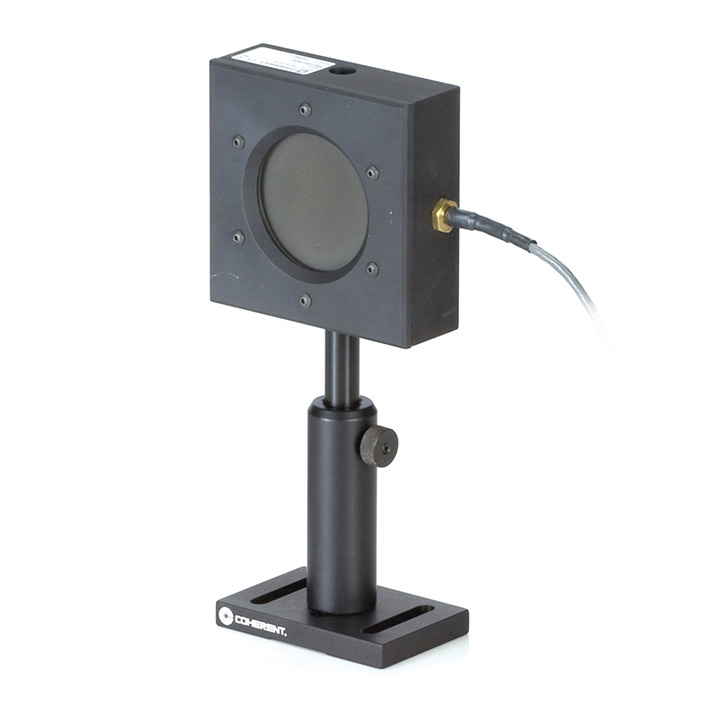

Coherent PM150-50C water-cooled laser power sensor

Updated:2025-03-13

Brand: Coherent
Model: PM150-50C
Description: This PM150-50C sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 80W without water for short durations (up to five minutes at a time). This se
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM150-50C water-cooled laser power sensor Description：

Datasheet

This PM150-50C sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 80W without water for short durations (up to five minutes at a time). This sensor model is also very commonly used for individual long-pulse energy measurements up to 150J.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1168348) is available.

Water-cooled thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 80W without water, intermittently, for up to five minutes.

Key Features:

300 mW to 150W range

50 mm diameter active area

Spectrally flat broadband coating

0.25 to 11 μm spectral range

Water-cooled

ISO 17025 accredited

General

Cable Type

PM DB-25

Cooling Type

Water, Air (intermittent)

Power Range

300 mW to 150W

Active Area Diameter

50 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.25 - 11

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
