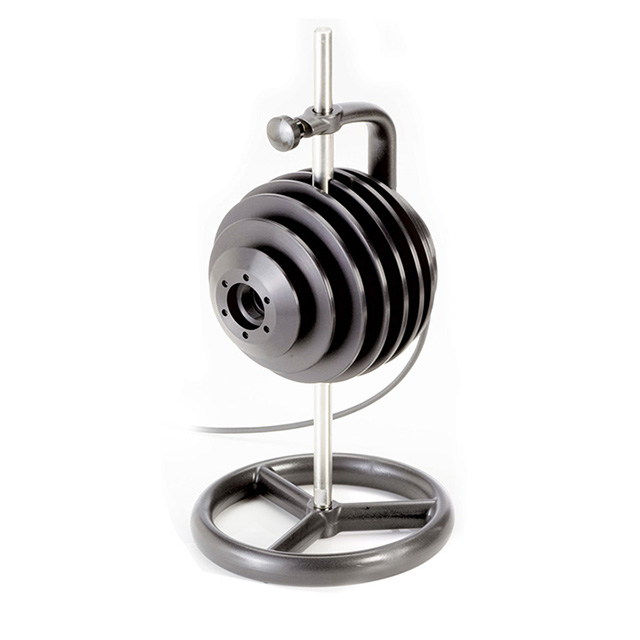

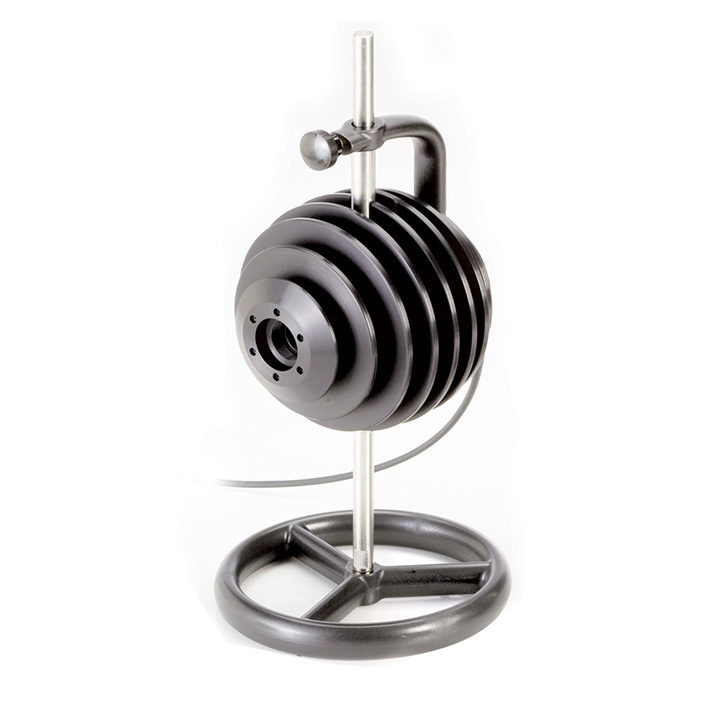

Coherent LM-100 Laser Power Sensor Description：

Datasheet

This LM-100 sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

A USB-direct (PN 1193300) model is available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Convectively cooled thermopile for measuring pulsed & CW lasers up to 100W with beam position measurement.

Key Features:

100 mW to 100W range

19 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

0.25 to 10.6 μm spectral range

Fiber adapters available

Convective air-cooled

ISO 17025 accredited
