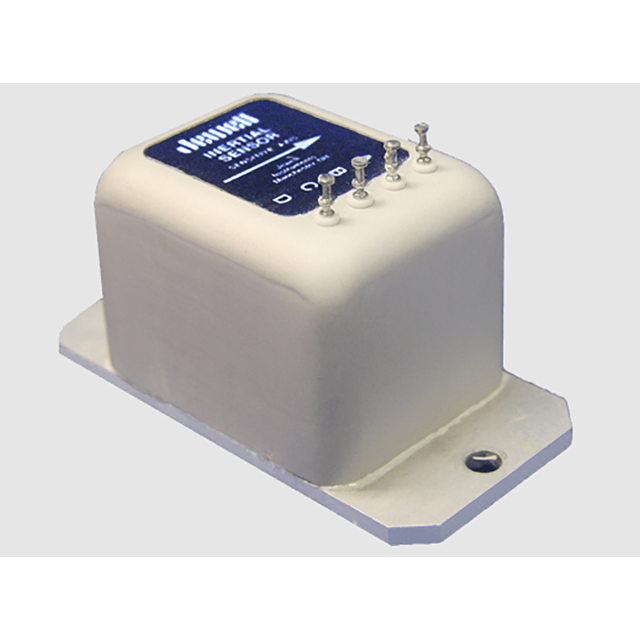

Jewell LCI Single-Axis Analog Inclinometer

Updated:2025-11-09

Brand: Jewell
Model: LCI
Description: The Jewell LCI Series flexure suspension servo inclinometer is a ±3° to ±90° device designed for low frequency tilt sensing applications. LCI units are characterized by excellent turn on repeatability
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LCI Single-Axis Analog Inclinometer Description：

Datasheet Outline Drawing

The Jewell LCI Series flexure suspension servo inclinometer is a ±3° to ±90° device designed for low frequency tilt sensing applications. LCI units are characterized by excellent turn on repeatability and very low hysteresis.

Specifications

Input Range (°)	±3.0	±5.0	±10.0	±14.5	±30.0	±90.0
Full Range Output (VDC, FRO ±5%)¹	±5	±5	±5	±5	±5	±5
Non-linearity (%FRO max)²	0.05	0.05	0.05	0.02	0.02	0.05
Scale Factor (Volts/g, nominal)	95.5	57.4	28.8	20.0	10.0	5.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	100	100	100	100	100	100
Bandwidth (-3dB, Hz, nominal)	5.0	5.0	5.0	5.0	5.0	5.0
Transverse Axis Misalignment (° maximum)	0.7	0.7	0.7	0.7	0.7	0.7
0° Output Range (Volts)	±0.1	±0.6	±0.075	±0.05	±0.05	±0.025
0° Output Temperature Sensitivity (Volts/°C, maximum)	0.0048	0.0029	0.0014	0.0003	0.0003	0.0003
Resolution & Threshold (μradian)³	1	1	1	1	1	1

Dimensions	1.53 in
Features	? Standard 5 Hz Bandwidth Cutoff ? Economically Priced – High Accuracy ? Resolves Angles > 1μrad ? 100 ppm/°C Scale Factor Temp Sensitivity ? -55°C to +85°C Operating Temp Range
Applications	? Robotics Orientation ? Antenna Leveling ? Laboratory Testing ? Telescope Vertical Reference Calibration ? Vehicle Wheel Align ? Movement Detection System ? Educational Research ? Train Tilt Control Systems ? Train Automated Controls ? Tunnel Tilt Measurement ? Track Monitoring and Testing

Number of Axes	1
Input Voltage Range (VDC)	±12 to ±18
Input Current (mA, maximum)	30
Output Impedance (Ω, nominal)	100
Noise (Vrms, maximum)	0.001
