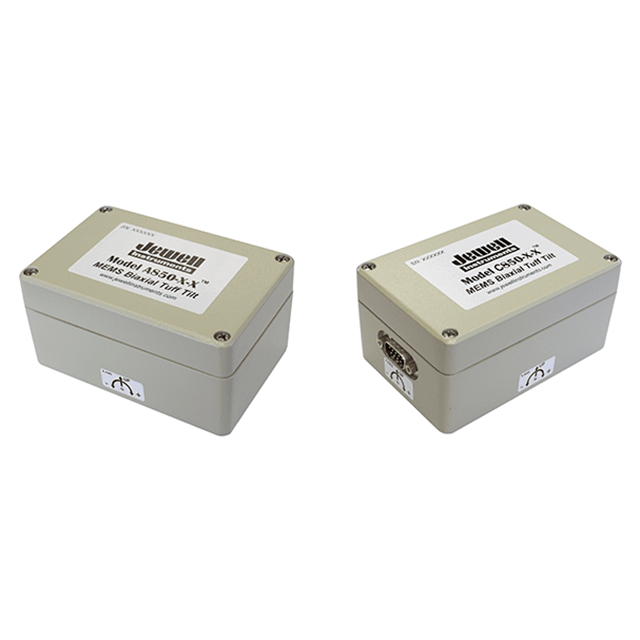

Jewell Model 850 MEMS Tuff Tilt Series

Updated:2026-01-23

Brand: Jewell
Model: Model 850
Description: This geotechnical MEMS tiltmeter is available in uniaxial and biaxial configurations. It presents a robust and rugged design for outdoor geotechnical use, but with the benefit of low-cost MEMS technol
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell Model 850 MEMS Tuff Tilt Series Description：

Datasheet Outline Drawing

This geotechnical MEMS tiltmeter is available in uniaxial and biaxial configurations. It presents a robust and rugged design for outdoor geotechnical use, but with the benefit of low-cost MEMS technology and ±5VDC, 0-5 VDC, or 4-20 mA output signals. It is an effective tilt sensing solution for platform leveling/positioning, structural monitoring, construction monitoring, industrial machinery positioning, radial gate measurement & control.

Specifications

A850-D: ±5VDC Output

Measurement Range (°)¹	±14.5	±30	±90
Output Voltage Range (VDC)	±5	±5	±5
Scale Factor Tolerance (%)	±1	±1	±1
Scale Factor Temperature Coefficient (PPM/°C maximum)	150	150	150
0° Output (Volts, maximum)	±0.03	±0.03	±0.03
0° Output Temperature Sensitivity (V/°C maximum)	±0.004	±0.004	±0.004
Transverse Axis Misalignment (° maximum)	±0.5	±0.5	±0.5
Resolution (° maximum)	0.002	0.002	0.004
Threshold (° maximum)	0.002	0.002	0.002
Non-linearity (% FRO maximum)	0.05	0..05	0.05
Nonrepeatability, Hysteresis (%FRO maximum)	0.014	0.007	0.004
Bandwidth (-3dB, Hz nominal)	5	5	5
Warm-Up Time (seconds, maximum)	0.5	0.5	0.5
Voltage to Radian Conversion²	ASIN(/20)	ASIN(/10)	ASIN(/5)
Temperature Sensor	PTC Thermistor, Nominal resistance: 1kΩ, ±2%, dissipation constant 2mW/°C

Number of Axes	1 or 2
Input Voltage Range (VDC)	±12 to ±18
Input Current (mA, maximum)	±6
Output Noise (Vrms maximum)	0.005
Output Impedance (Ω nominal)	1
Operating Temperature Range (°C)	-40 to +85
Storage Temperature Range (°C)	-40 to +95
Shock	100g. 0.011 sec, ? sine
Seal	IP65

A850-S: 0-5VDC Output

Measurement Range (°)¹	±14.5	±30	±90
Output Voltage Range (VDC)	0-5	0-5	0-5
Scale Factor Tolerance (%)	±1	±1	±1
Scale Factor Temperature Coefficient (PPM/°C maximum)	150	150	150
0° Output (Volts, maximum)	±0.03	±0.03	±0.03
0° Output Temperature Sensitivity (V/°C maximum)	±0.004	±0.004	±0.004
Transverse Axis Misalignment (° maximum)	±0.5	±0.5	±0.5
Resolution (° maximum)	0.002	0.002	0.004
Threshold (° maximum)	0.002	0.002	0.002
Non-linearity (% FRO maximum)	0.05	0..05	0.05
Nonrepeatability, Hysteresis (%FRO maximum)	0.014	0.007	0.004
Bandwidth (-3dB, Hz nominal)	5	5	5
Warm-Up Time (seconds, maximum)	0.5	0.5	0.5
Voltage to Radian Conversion²	ASIN(-2.5/10)	ASIN(-2.5/5)	ASIN(-2.5/2.5)
Temperature Sensor	PTC Thermistor, Nominal resistance: 1kΩ, ±2%, dissipation constant 2mW/°C

Number of Axes	1 or 2
Input Voltage Range (VDC)	12 to 30
Input Current (mA, maximum)	7
Output Noise (Vrms maximum)	0.005
Output Impedance (Ω nominal)	1
Operating Temperature Range (°C)	-40 to +85
Storage Temperature Range (°C)	-40 to +95
Shock	100g. 0.011 sec, ? sine
Seal	IP65

C850: 4-20mA Output

Measurement Range (°)¹	±14.5	±30	±90
Output Voltage Range (mA)	4-20	4-20	4-20
Scale Factor Tolerance (%)	±1	±1	±1
Scale Factor Temperature Coefficient (PPM/°C maximum)	150	150	150
0° Output (Volts, maximum)	12±0.3	12±0.3	12±0.3
0° Output Temperature Sensitivity (V/°C maximum)	±0.004	±0.004	±0.004
Transverse Axis Misalignment (° maximum)	±0.5	±0.5	±0.5
Resolution (° maximum)	0.002	0.002	0.004
Threshold (° maximum)	0.002	0.002	0.002
Non-linearity (% FRO maximum)	0.05	0..05	0.05
Nonrepeatability, Hysteresis (%FRO maximum)	0.004	0.004	0.004
Bandwidth (-3dB, Hz nominal)	5	5	5
Warm-Up Time (seconds, maximum)	0.5	0.5	0.5
Voltage to Radian Conversion²	arcsin((-12mA)/32mA)	arcsin((-12mA)/16mA)	arcsin((-12mA)/8mA)
Temperature Sensor	PTC Thermistor, Nominal resistance: 1kΩ, ±2%, dissipation constant 2mW/°C

Number of Axes	1 or 2
Input Voltage Range (VDC)	12 to 30
Input Current (mA, maximum)	28
Output Noise (Vrms maximum)	0.01
Output Impedance (Ω nominal)	1
Operating Temperature Range (°C)	-40 to +85
Storage Temperature Range (°C)	-40 to +95
Shock	100g. 0.011 sec, ? sine
Seal	IP65

Features	? ±14.5°, ±30° and ±90° ranges ? Robust and Rugged Enclosure ? Uniaxial and Biaxial Models Available ? Low-Cost MEMS Technology ? RoHS Compliant ? Filtering Available ? Dual Power Input ? ±5 VDC Output ? Temperature Sensor Option Available ? IP65 Seal
Applications	? Platform Leveling/Positioning ? Structural Monitoring ? Construction Monitoring ? Industrial Machinery Positioning ? Radial Gate Measurement & Control
