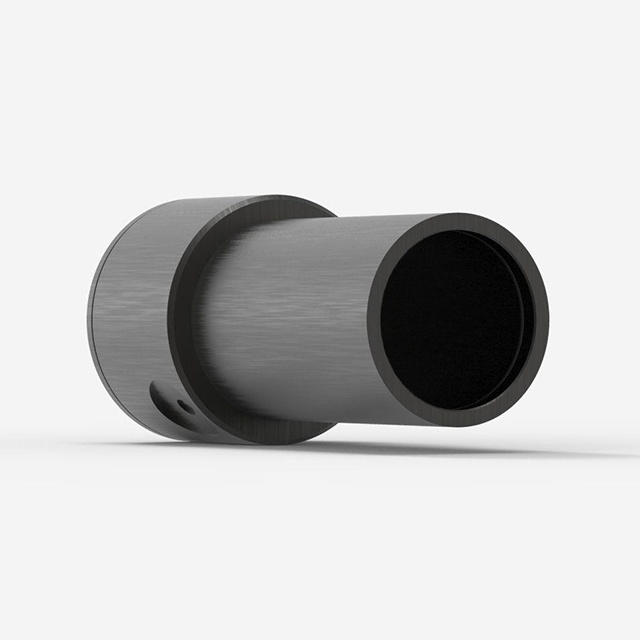

Gentec-EO UM9B-BL-D0 Pyroelectric detector for laser power measurement up to 25 mW.
Measure low-power lasers at any wavelength with the BL absorber
The spectrally ultra-flat and broadband coating absorbs a very wide range of wavelengths. The very high absorptivity of our BL absorber guarantees a high sensitivity.
Can be used with broadband light sources
Wide dynamic range
Very low noise
Key Features
Very Low Noise Level
Noise levels of a photodetector, but with the large bandwidth of a pyroelectric
Very Large Bandwidth
From DUV to FIR thanks to pyroelectric technology
Smart Interface
Containing all the calibration data
Specifications
| Measurement capabilities | |
| Maximum average power (continuous) | 25 mW |
| Noise equivalent power | 300 nW |
| Spectral range | 0.1 - 20 μm |
| Typical rise time | 0.2 s |
| Power calibration uncertainty | ±4 % |
| Chopper frequency | 10 ± 1 Hz |
| Damage thresholds | |
| Maximum average power density | 50 mW/cm2 |
| Physical characteristics | |
| Aperture diameter | 9 mm |
| Absorber | BL |
| Dimensions | 38.1? X 79D mm |
| Weight | 0.09 kg |
