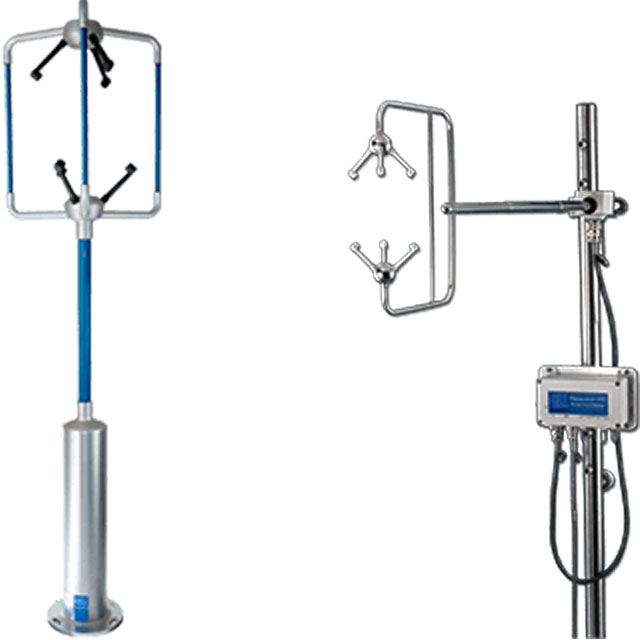

Research Full Series -Gill 3 axis research series ultrasonic anemometer

User 's Manual

HS-50

• Horizontal head for highly accurate vertical flow analysis
• 50Hz data output rate
• Inclinometer buit-in for simple positioning on a mast or tower
• PRT and 6 analogue inputs
• Stainless steel construction
• ?? ?

datasheet

R3-100

• 100Hz data output rate
• -40°C to +60°C operating temperature
• PRT and analogue input options available
• Robust, lightweight aluminium/carbon fibre construction
• ?? ?
• ?? ?
• ?? ?

datasheet

HS-100

• Horizontal head for highly accurate vertical flow analysis
• 100Hz data output rate
• Inclinometer built-in for simple positioning on a mast or tower
• PRT and 6 analogue inputs
• Stainless steel construction

datasheet

R3-50

• 50Hz data output rate
• -40°C to +60°C operating temperature
• PRT and analogue input options available
• Robust, lightweight aluminium/carbon fibre construction
• ?? ?
• ?? ?
• ?? ?
• ?? ?

datasheet

Research-Key Features

1. Research quality 3-axis (3D) measurements with output rates up to 100Hz

2. Symmetrical and asymmetrical heads available to suit applications

3. Up to 45 m/s (162 km/h) wind speed, 0-359° wind direction measurement

4. Available with 14 bit digital (RS422/RS232) or analogue outputs

5. Individual calibration as standard to ensure high data accuracy

6. Comprehensive support includes technical advice

Research 3-axis ultrasonic anemometers (wind sensors) - more details

Designed and manufactured by Gill Instruments in the UK, Gill Research 3-axis ultrasonic anemometers provide high accuracy with fast and reliable output rates.

High performance measurement, output rates up to 100Hz and a choice of head configuration to support varied research scenarios make Gill Research anemometers a popular choice for environmental, meteorological, commercial and other scientific research applications.

Output protocol options for the Research range include RS422. (RS232 and analogue outputs are available options via PCI/PCIA).

Environmental protectionto IP65 across all Research models.

Ultrasonic technology provides highly accurate and reliable wind speed and direction data using solid state technology, with no moving parts, reducing the need for maintenance and making the Gill Research range of 3D anemometers ideal for harsh weather environments and remote locations.
