User's Manual

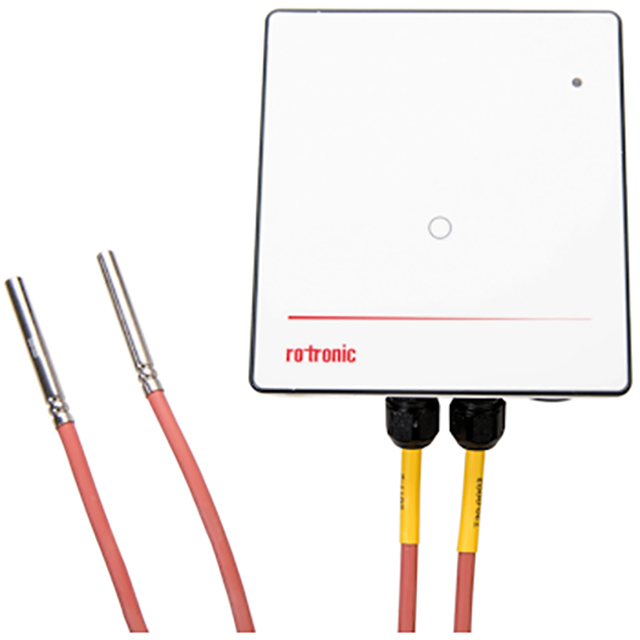

The RMS-LOG-T30 is a data logger with two integrated analog-to-digital converters, to which two PT100 sensors can be connected for high-precision temperature measurement. The measuring accuracy of the data logger with PT100 can be improved by a 1- or 2-point adjustment. The data logger stores 44,000 pairs of measured values and sends them to the RMS database via LAN or wireless interface.
Specifications
| Accuracy (@23 °C, without PT100) | ±0.1 °C (-100 °C to 200 °C) / ±0.2 °C (-200 °C to 850 °C) |
|---|---|
| Range of application | -40…70 °C / 0...100 %RH |
| AC adapter requirements | 24 VDC ±10 % / >4 W / power-limited |
| Battery lifetime | 23 °C, 60 s interval, 2.4 years |
| Interface | Ethernet |
| Measured parameters | 2-, 3- and 4-wire RTD measurement |
| Number of measuring points | 2 x PT100 probes |
| Measurement interval | 10 s to 15 min |
| Ethernet cable requirement | Min. Cat 5, SFTP, max. 30 m |
| Protocols | HTTP / Modbus TCP |
| Fire protection class | UL94-V2 |
| Housing | PC / ABS |
| FDA / GAMP | FDA 21 CFR part 11 / GAMP5 |
| Storage and transport conditions | -20...30 °C / 0...95 %RH |
| Dimensions | 105 x 113 x 38 mm |
| IP protection class | IP65 |
| Weight | 240 g |
Suitable Applications
