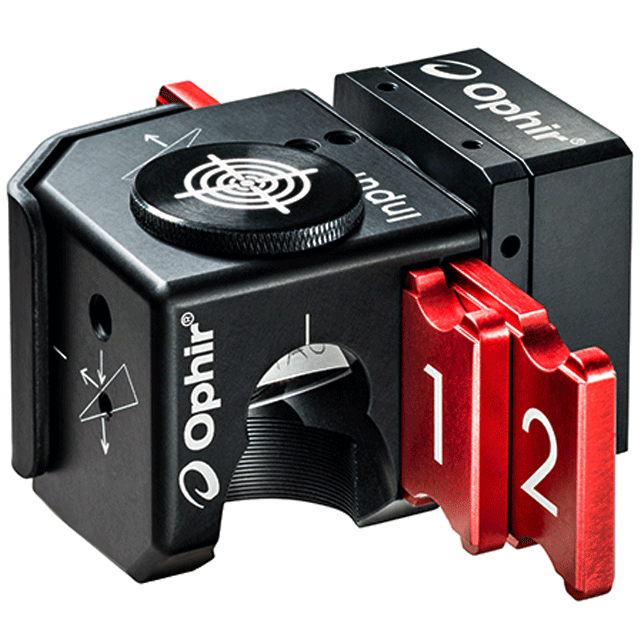

Focal Spot Analyzer

Updated:2025-03-13

Brand: OPHIR
Model: FAS
Description: Measure your laser beam power distribution and focal spot size of wavelengths from 300 – 1100nm. The average power can be from <1 to 400 Watts and up to 5 kW for FSA-HP, the focal spot can be as small
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Focal Spot Analyzer features

User's Manual

Image focal spots down to 34.5μm in size
For laser powers up to 400W and up to 5kW for FSA- HP version
Can measure systems with focal length as short as 73mm
Produces undistorted sample of laser under test
Adjustable attenuation maximizes system dynamic range
Up to 1 x 10-10 attenuation available
Analyzer includes camera, attenuation, BeamGage software and calibration certificate
The FSA is a combination of a camera, Beam Splitter, Neutral Density filters and a BeamGage software.

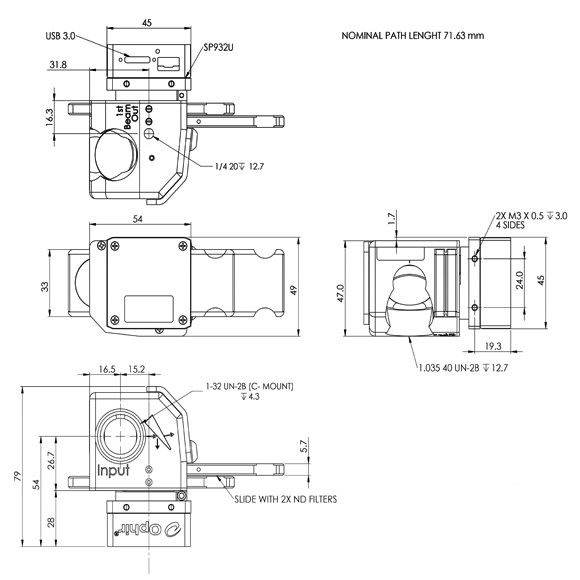

Focus analyzer drawing

FSA-HP For measurement of focal position and profile of high-power lasers above 1kW at NIR (~1064nm) region, FSA-HP version can be used. It allows same operation as standard FSA but operates up to 5kW or 15MW/cm2 without significant heating. Only 0.0001% (1/106) of the incident beam is reflected towards Ophir Beam Profiler, enabling beam sampling of extremely high powers and power densities.

Focus analyzer Specifications

Wavelengths	190-1100nm
Beam Sizes	34.5μm - 5.3mm
Interface	USB 3.0
Sensor Type	CMOS
Compatible Light Sources	CW, Pulsed
Active Area	7.06mm x 5.3mm
Elements	2048 × 1536
Effective Pixel Pitch	3.45μm x 3.45μm
Dynamic Range	72dB
Frame Rate at Full Resolution	24 fps
Compliance	CE, UKCA, China RoHS

Focus analyzer Relevant Parts Information：

FSA-UV-SP932U P/N SP90614

LBS-300s-UV beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1/1.8” format 2048 x 1536 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to imager. Comes with USB cable and 3 ND filters.
FSA-VIS-SP932U P/N SP90615

LBS-300s-VIS beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1/1.8” format 2048 x 1536 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to imager. Comes with USB cable and 3 ND filters.
FSA-NIR-SP932U P/N SP90616

LBS-300s-NIR beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1/1.8” format 2048 x 1536 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to imager. Comes with USB cable and 3 ND filters.
FSA-BB-SP932U P/N SP90617

LBS-300s-BB beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1/1.8” format 2048 x 1536 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to imager. Comes with USB cable and 3 ND filters.
FSA-HP-NIR-SP932U P/N SP90603

LBS-300s-NIR beam splitter for High Power lasers & neutral density filters combo + BeamGage Professional software, software license, 1/1.8” format 2048 x 1536 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to imager. Comes with USB cable and 3 ND filters.
BGP-LBS-300s-UV-CAL-LT665 P/N SP90481

LBS-300s-UV beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1" format 2752X2192 pixel camera pixel camera + NIST/National Lab traceable calibrated path length from top of unit to CCD array. Comes with USB cable and 3 ND filters.
BGP-LBS-300s-VIS-CAL-LT665 P/N SP90482

LBS-300s-VIS beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1" format 2752X2192 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to CCD array. Comes with USB cable and 3 ND filters.
BGP-LBS-300s-NIR-CAL-LT665 P/N SP90483

LBS-300s-NIR beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1" format 2752X2192 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to CCD array. Comes with USB cable and 3 ND filters.
BGP-LBS-300s-BB-CAL-LT665 P/N SP90484

LBS-300s-BB beam splitter & neutral density filters combo + BeamGage Professional software, software license, 1" format 2752X2192 pixel camera + NIST/National Lab traceable calibrated path length from top of unit to CCD array. Comes with USB cable and 3 ND filters.
