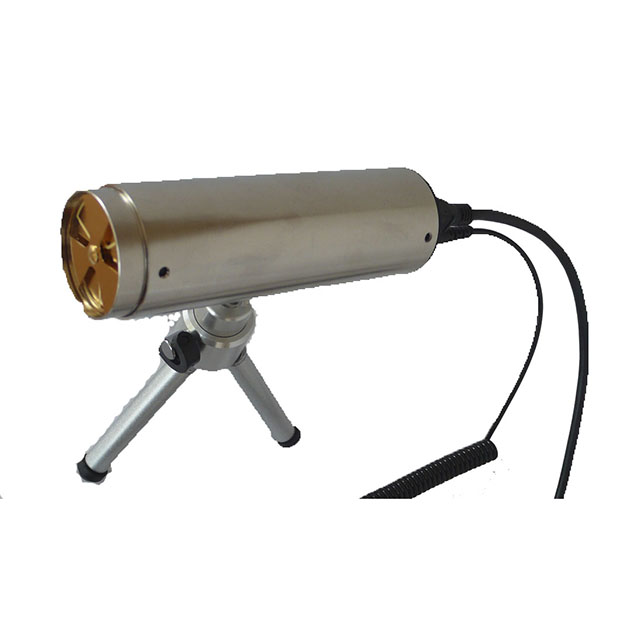

The EFM 115 is a small and handy electro field meter with a high sensitivity designed for the measurement of dc fields and static charges according to the fieldmill influence principle. Digital USB Output. Powered by USB.
Scope of delivery
ESD Case with foam
Tripot Photo Stativ
USB Connection cable
CD with EFM_ReadOut Software
Manual
Declaration of calibration
| Dimensions: | 120mm x 40mm (l x d) |
| Measuring range: | 5kV/m, 25kV/m, 50kV/m und 250kV/m |
| Metering precision: | 5% in a homogenous field |
| Calibration: | In the homogenous field of a plate capacitor plate size 200mm x 200mm, plate distance 25mm modulator system mounted centered in the plate |
| Power supply: | USB 5V |
| Interface: | USB 2.0 |
| Mounting: | Insert nut with photo thread |
| Operating time: | In one shift operation min. 2 years |
