The EA-1 Ethernet Adapter turns your sensor into an Ethernet Laser Power Meter. Features include:
From sensor direct to Ethernet with no PC connection
Power direct from the Ethernet bus
Supports thermopile, photodiode and pyroelectric smart sensors
PC application software package included
Allows remote monitoring via Telnet, HTTP and UDP protocols
Log power and energy, average, statistics, histograms and more with included StarLab application
New: Low Frequency Power on Photodiode sensors - power measurement based on pulse cycle (for VCSEL)

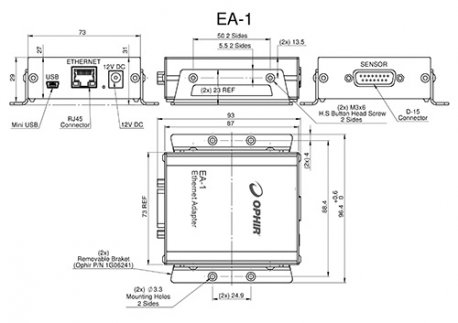

EA-1 Drawing
| Thermal Sensors | Yes |
| Photodiode Sensors | Yes |
| Pyroelectric Sensors | Yes |
| BeamTrack Sensors | Yes |
| Statistics | Yes |
| Analog Out | No |
| Communication | Ethernet, USB |
| Trigger Input & Output | No |
| Power Supply | Via Ethernet or included Power Supply |
| Ethernet | Yes |
| RS232 | N/A |
| GPIB | N/A |
| USB | Yes |
| Bluetooth | N/A |
| On-Board Data Storage | No |
| Automation Interface | Yes |
| Labview VI's | No |
