The Comet 1K is a portable power puck laser sensor with a 50mm aperture. It can measure power from 20W to 1000W by sampling a 10s exposure of laser power. It has the spectrally flat broadband coating and covers the spectral range from 0.2 to 20μm.

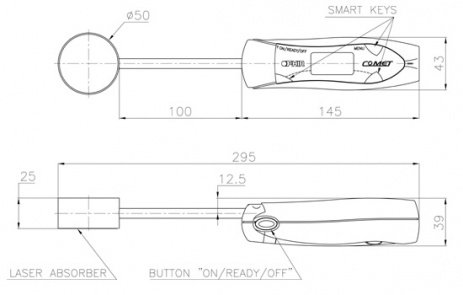

Comet 1K Drawing
| Absorber Type | N.A. |
| Aperture | ?50mm |
| Spectral Range | 0.2-20μm |
| Power Range | 20W-1000W |
| Energy Range | N.A. |
| Backscattered Power | N.A. |
| Dimensions | 295 L x 25 W x 50 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 4kW/cm2 |
| Response Time | N.A. |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 15J/cm2 |
| Max Average Power | 1kW |
| BeamTrack Functions | N.A. |
